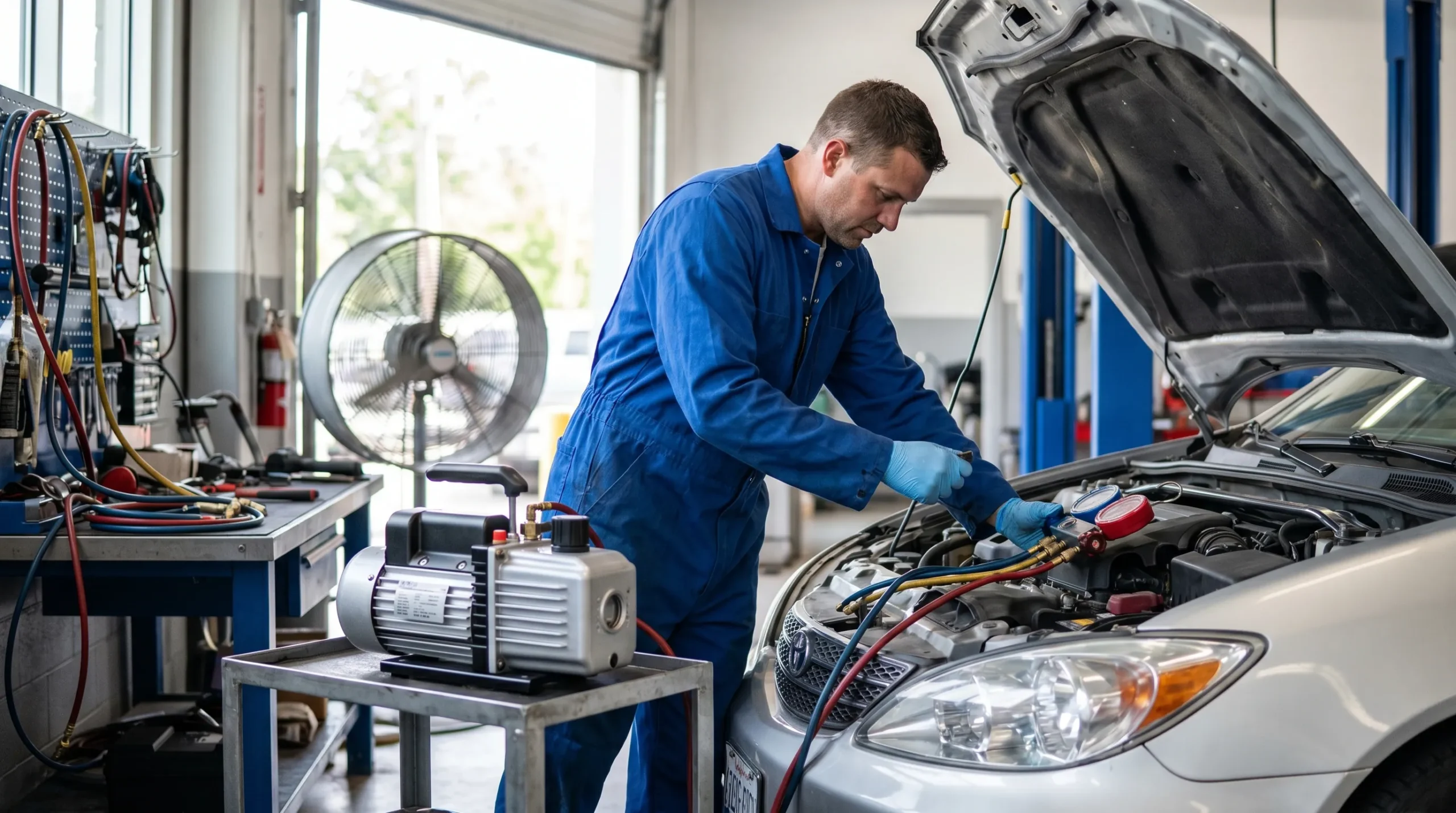

How to Evacuate Car AC: The Right Way to Remove Air and Moisture

How to evacuate car ac is one of the most misunderstood parts of car air conditioning service, because many people confuse refrigerant recovery, evacuation, and recharge as if they are the same thing. They are not. If you want your car AC system to cool properly, last longer, and avoid damage from air and moisture contamination, you need to understand what AC system evacuation really means and how to do it the right way.

In simple terms, evacuating a car AC system means pulling a deep vacuum on the system after it has been opened or repaired. The goal is to remove air, moisture, and other contaminants before you recharge the system with the correct amount of refrigerant. That matters because trapped moisture can reduce cooling efficiency, create internal corrosion, and even contribute to acid formation that harms expensive parts like the AC compressor, expansion valve, and evaporator.

This guide walks through how to evacuate a car AC system, what tools you need, how long to run a vacuum pump, what vacuum level to aim for, what to do if the system will not hold vacuum, and when it makes more sense to call a licensed AC professional.

What Does It Mean to Evacuate a Car AC System?

A proper car AC evacuation is not about “sucking out refrigerant.” That is a different step called refrigerant recovery. Evacuation happens after the refrigerant has already been safely removed or after you know the system is empty.

When you attach a manifold gauge set and a vacuum pump to the service ports, the pump removes air and moisture from the sealed system. That vacuum helps prepare the system for a clean, accurate recharge. It also gives you a basic way to check whether the system can hold vacuum. If the vacuum drops too quickly, you may have a leak at the O-rings, hose connections, service valves, compressor shaft seals, or another weak point.

This is why proper AC system evacuation matters so much. A car AC system is designed to circulate refrigerant and oil, not air and water vapor. Even a small amount of contamination can hurt cooling performance and make the system work harder than it should. In more technical terms, many technicians want to see a deep vacuum, often discussed as around 29 inHg, 28–30″ Hg, or ideally near 500 microns depending on the equipment being used.

If you skip evacuation and go straight to a recharge, you risk poor vent temperatures, unstable pressures, and premature component wear. In other words, what happens if you skip AC evacuation is often simple: the AC may still run, but it may not run well or for long.

Recovery vs. Evacuation vs. Recharge: Know the Difference

One of the biggest mistakes in this topic is mixing up three separate jobs.

Refrigerant recovery means removing refrigerant from the system with the proper recovery and recycling equipment. This is the step required when the system still contains refrigerant. A regular vacuum pump is not a substitute for recovery.

Evacuation means pulling a vacuum on the system after recovery or after repair. This step removes air, moisture, and contamination. It is the answer to the question “do I need to evacuate before recharge?” In most cases, yes, especially if the system has been opened.

Recharge means adding refrigerant back into the system according to vehicle manufacturer specifications. This includes using the correct refrigerant type, such as R-134a or R-1234yf, and the correct fill amount. Too much refrigerant can lead to overcharging, and too little can reduce performance.

A useful way to remember it is this:

If you understand this distinction, you already know more than many DIY guides explain.

Is It Legal to Evacuate Car AC at Home?

This is where things get practical. Yes, some parts of the process can be done at home, but not every situation is a true DIY car AC evacuation job.

If the system still contains refrigerant, you should not simply crack a line open or try to vent it. That is why the phrase “can you legally vent refrigerant from a car AC system” matters. The safe workflow is to have the refrigerant properly recovered first, then pull a vacuum before recharge.

That also answers another common question: can you evacuate a charged AC system? Not correctly. If the system is still charged, the first step is recovery, not evacuation. A vacuum pump is designed to pull vacuum, not safely handle refrigerant removal.

For many people, the smartest path is hybrid service: let a shop recover the refrigerant, do your repair, then perform the evacuation and recharge only if you have the right tools, correct information, and confidence. If not, a certified technician or licensed professional is the better option.

Tools and Supplies You Need Before You Start

If you want to know what equipment is required to evacuate a car AC, the answer starts with the basics and then expands depending on the vehicle and refrigerant type.

You will need a vacuum pump, a manifold gauge set, and the correct hoses and fittings for your system. Many DIY users work with pumps rated around 4.5 CFM and 1/3 HP, which are common consumer-level specs, though exact capacity needs vary. You also need fresh vacuum pump oil, because old or contaminated oil reduces the pump’s ability to pull a deep vacuum.

You should also have proper safety goggles, gloves, and a clean work area. A decent electronic leak detector can help if you suspect the system has a leak after recharge. If you plan to recharge the system yourself, a refrigerant scale is strongly recommended so you can avoid guessing the charge amount.

The typical setup includes the blue hose, red hose, and yellow hose on the manifold set. The blue side usually connects to the low-pressure port, the red side to the high-pressure port, and the yellow hose goes to the vacuum pump or charging source depending on the step.

Before starting, always confirm your refrigerant type and service-port style. Modern vehicles using R-1234yf often differ from older R-134a systems in fittings and service procedures.

Check the Refrigerant Type First: R-134a vs. R-1234yf

A strong article on how to evacuate car ac should never ignore refrigerant type. This is one place many competitors stay too general.

Older vehicles commonly use R-134a, while many newer vehicles use R-1234yf. These are not interchangeable, and you should not mix refrigerants. The service fittings, tools, oil requirements, and costs may differ, so the first smart move is reading the under-hood sticker or service label.

If you are working on a classic vehicle, you may even run into legacy terms like R12 Frigiking system or references to older vehicles such as a 1968 Mercedes 280 sl. That does not change the basic concept of evacuation, but it does change what equipment and service knowledge are appropriate.

This is why vehicle manufacturer specifications matter. Even if the vacuum procedure feels similar, the recharge details absolutely are not.

Step-by-Step: How to Evacuate a Car AC System Properly

Now let’s get into the actual procedure.

First, make sure the system is empty or has already had its refrigerant professionally recovered. This matters more than any shortcut you may see online. If the system still contains refrigerant, stop there and handle recovery first.

Next, connect your manifold gauge set. Attach the blue hose to the low-pressure port and the red hose to the high-pressure port. Make sure the connections are tight at the service ports and check the hoses for visible damage. Then attach the yellow hose to the vacuum pump.

Before you turn the pump on, verify the pump has fresh vacuum pump oil. A neglected pump will not pull the vacuum you need, which leads many people to think they have a leak when the real problem is poor equipment setup.

Now open the valves on the manifold and start the pump. This begins the actual AC system evacuation. The goal is to pull vacuum long enough to remove as much air and moisture as possible. Many DIY guides mention ranges like 15–30 minutes, 30–45 minutes, or even 15–45 minutes depending on how long the system was open and how humid the environment is. If the system has been open for a while, the longer end is usually safer.

As the vacuum builds, watch your vacuum gauge readings. Many users want to know what vacuum should an AC system reach, and a common gauge-based answer is close to 29 inches of mercury, often written as 29 inHg or 28–30″ Hg. More advanced technicians may use a micron gauge and aim for around 500 microns for a better read on deep vacuum quality.

Once the system has been under vacuum long enough, close the manifold valves and turn off the pump. This begins the vacuum hold test. Wait and watch. Some people check for 5–10 minutes, others wait 10–15 minutes, and careful technicians may wait longer. The point is to see whether the system loses vacuum.

If the vacuum stays stable, the system is more likely ready for recharge. If the vacuum drops noticeably, that suggests a leak or contamination issue. This is the moment when questions like “what vacuum loss indicates a leak” or “why won’t my AC system hold vacuum” become relevant.

After the system passes the hold test, you can move to recharge. This step must follow the correct refrigerant type and exact factory charge amount. Guessing is where many people ruin good work. How to recharge the system after evacuation deserves its own guide, but the short version is simple: charge by spec, not by feel.

How Long Should You Evacuate a Car AC System?

One of the most common long-tail searches is “how long does AC evacuation take” or “how long to run a vacuum pump on car AC.” The honest answer is that it depends on the system condition, ambient humidity, and tool quality.

A system opened briefly for a simple repair may need roughly 15–30 minutes of vacuum time. A system that has been open longer, especially in humid weather, may benefit from 30–45 minutes. Some DIYers stop too early because the gauge looks close to 29 inHg, but the presence of moisture is not always obvious just from a quick glance.

That is why deeper-vacuum thinking matters. A system may show near-full vacuum on a basic gauge yet still need more time to boil off moisture. If you want the best result, use time as a minimum and stability as confirmation.

So, how long should you evacuate an AC system? Long enough to remove air and moisture thoroughly, then long enough to confirm it can hold vacuum.

What Vacuum Should a Car AC System Reach?

Another common question is “proper vacuum level for car AC evacuation.”

On most basic automotive manifold gauges, people look for a reading close to 29 inHg or 28–30″ Hg. That is a useful rule of thumb, but it is not the whole story. Ambient altitude, gauge accuracy, and equipment quality all affect the reading. Some consumer tools also advertise precision figures such as ±1.6%, but real-world setup still matters more than brochure numbers.

A better professional-style measurement is in microns, where around 500 microns is often treated as a strong benchmark for a deep, dry system. Most DIY users do not use micron gauges, but the concept is still helpful: the goal is not just a good-looking needle position, but a genuinely dry, sealed system.

If you pull vacuum and only reach a weak number like 24.04″ Hg when you expected something much closer to 29.87″ Hg, you may have a setup problem, a bad pump, poor hose sealing, or a leak.

What If the System Won’t Hold Vacuum?

This is where real troubleshooting starts.

If the system loses vacuum after the pump is shut off, begin with the simplest possibilities. Check the manifold connections, the hose ends, and the service port cores. It is surprisingly common for a loose fitting to create the impression of a system leak.

If the setup is solid, move on to actual system leak points. Common culprits include O-rings, hose connections, crimp sleeves, compressor shaft seals, the condenser, or the evaporator. In some cases, the vacuum may fall by about 2″ Hg or more during the hold period, which is a clear sign that something is not right.

There is also the question of contamination. If the system sat open for too long, heavy moisture exposure can complicate the process. That is one reason replace receiver-drier after opening AC system is such an important topic. The filter drier or accumulator is there to help manage moisture, but once saturated, it cannot do its job well.

A practical mini case study looks like this: someone replaces a condenser, pulls vacuum for 10 minutes, sees near 29 inHg, then shuts the pump off and watches the gauge creep upward. They assume the pump was too weak. In reality, the issue may be a leaking O-ring at the new condenser connection, not insufficient pump time.

If you recharge after a failed hold test, you are likely setting yourself up for another failure. Find the leak first.

Do You Need to Replace the Receiver-Drier or Accumulator?

This is a major gap area competitors often skip.

If the AC system has been open to the atmosphere, especially during bigger repairs like system opened for compressor replacement, condenser replacement, or evaporator replacement, the receiver-drier or accumulator may need replacement. Why? Because its job includes moisture control, and moisture is exactly what you are trying to remove during evacuation.

An old filter drier that has already absorbed moisture cannot protect the system the way a fresh one can. That is why skilled technicians frequently replace it whenever the system has been open for service. This is especially important in humid climates and on older systems where internal wear is already a concern.

If you are wondering why your freshly repaired system still behaves badly after a vacuum and recharge, the drier can absolutely be part of the answer.

Can You Evacuate Car AC Without a Vacuum Pump?

This is a high-interest search query because many people hope there is a shortcut. Realistically, can I evacuate car AC without a vacuum pump is the wrong question if you care about doing the job correctly.

Without a pump, you cannot pull a proper deep vacuum. And without a proper deep vacuum, you are not effectively removing air and moisture. You may still be able to open the system, replace a part, and bolt it back together, but that is not a true evacuation.

So while you may find hacks online, they do not replace the real process. This is one area where DIY vs professional AC evacuation becomes an honest decision. If you do not have a pump, gauges, and accurate charging equipment, paying a shop may actually be cheaper than making the same repair twice.

DIY vs. Professional Car AC Evacuation

A good DIY car AC evacuation can work when the system is already empty, the repair is straightforward, the refrigerant type is known, and the person doing the work understands the sequence. In that situation, your cost is mainly tools, time, and refrigerant.

But professional service has real advantages. A shop can recover refrigerant, pressure-test the system more thoroughly, verify leaks faster, and recharge with better precision. This matters even more on R-1234yf vehicles, where mistakes can get expensive fast.

If you are comparing car AC evacuation cost or AC evacuation and recharge cost, remember to compare it against the cost of a failed DIY attempt. One misread gauge, one wrong refrigerant amount, or one overlooked leak can wipe out any savings.

For many people, the smartest choice is simple: DIY the mechanical repair if you are comfortable, but let a pro handle the AC service end.

Safety Tips Before, During, and After Evacuation

A few safety reminders go a long way. Wear safety goggles and gloves. Work in a well-ventilated area. Keep your hoses organized so you do not accidentally cross the high-pressure side and low-pressure side connections. Never assume all systems use the same refrigerant, and never assume you can “top it off” by guesswork.

Heat also matters. Under-hood temperatures can climb fast, sometimes far above comfort levels such as 140 degrees Fahrenheit, and even small vent temperature changes of five degrees Fahrenheit can tell you whether the system is actually improving after service.

Most of all, do not rush. AC work rewards patience more than speed.

FAQ: Quick Answers About How to Evacuate Car AC

Do I need to evacuate before recharge?

Yes, if the system has been opened or exposed to air, evacuation is the correct step before recharge.

Can I recharge without evacuating?

You can, but it is usually a bad idea if air or moisture entered the system. Performance and reliability may suffer.

Can you evacuate a charged AC system?

No. If refrigerant is still inside, recovery comes first.

How long should a car AC hold vacuum before recharge?

Many people watch it for 10 minutes or more, but longer observation can give more confidence, especially after major repairs.

What vacuum should I see?

A common target is close to 29 inHg or 28–30″ Hg, while a deeper professional benchmark may be around 500 microns.

Why won’t my AC system hold vacuum?

Possible causes include leaking O-rings, bad hose seals, loose fittings, damaged service valves, or failed components like compressor shaft seals.

Can I use the same process for R-134a and R-1234yf?

The evacuation idea is similar, but fittings, equipment, and recharge details differ. Always follow the correct specs.

Conclusion

Learning how to evacuate car ac the right way is less about memorizing one magic number and more about understanding the full service sequence. First confirm the refrigerant situation. Then use a proper vacuum pump and manifold gauge set to remove air and moisture. Aim for a strong vacuum, verify the system can hold vacuum, and only then move to recharge with the correct refrigerant and charge amount.

Done properly, car AC evacuation protects cooling efficiency, helps prevent leaks from being overlooked, and gives your AC compressor, evaporator, and related components a better chance of lasting. Done poorly, it turns a simple repair into a recurring problem.

Disclaimer:

This article is for informational purposes only. Car AC evacuation involves refrigerants, vacuum equipment, and pressurized systems. Readers should follow safety guidelines and consult licensed automotive AC professionals for repairs or procedures beyond basic maintenance.
